Single-Riveted Lap-Joint Equations and Calculator

The single-riveted lap-joint is a widely used technique in mechanical engineering, particularly in the design and construction of aircraft, ships, and other machinery. This joint type involves two overlapping plates connected by a single row of rivets. To ensure the structural integrity of such joints, engineers rely on precise calculations. The single-riveted lap-joint equations provide a mathematical framework for determining the joint's strength and durability. This article presents the underlying equations and introduces a calculator tool to facilitate the calculation process, enabling engineers to design and optimize single-riveted lap-joints with increased accuracy and efficiency.

Single-Riveted Lap-Joint Equations and Calculator

The Single-Riveted Lap-Joint is a type of joint used in engineering to connect two plates together. It is a simple and efficient way to join two plates, but it requires careful calculation to ensure that the joint is strong enough to withstand the loads that will be applied to it. The Single-Riveted Lap-Joint Equations and Calculator are used to calculate the strength of the joint and to determine the required number of rivets.

Introduction to Single-Riveted Lap-Joint

The Single-Riveted Lap-Joint is a type of joint that is commonly used in aircraft, shipbuilding, and other industries where high-strength joints are required. The joint consists of two plates that are overlapped and joined together with rivets. The strength of the joint depends on the number and size of the rivets, as well as the type of material used for the plates.

Calculating the Strength of the Joint

To calculate the strength of the Single-Riveted Lap-Joint, the following equations are used:
- The shear stress on the rivets is calculated using the formula: τ = F / (π d^2 / 4)
- The tensile stress on the plates is calculated using the formula: σ = F / (t w)
Where F is the applied load, d is the diameter of the rivet, t is the thickness of the plate, and w is the width of the plate.

Types of Rivets Used

There are several types of rivets that can be used in a Single-Riveted Lap-Joint, including:
- Solid rivets: These are the most common type of rivet and are made from a single piece of metal.
- Blind rivets: These are used when access is only available from one side of the joint.
- Tubular rivets: These are used in applications where high strength is required.

Advantages and Disadvantages of Single-Riveted Lap-Joint

The Single-Riveted Lap-Joint has several advantages, including:
- High strength-to-weight ratio
- Easy to manufacture
- Can be used in a variety of applications
However, it also has some disadvantages, including:
- Limited fatigue life
- Requires careful calculation to ensure adequate strength
- Can be prone to corrosion if not properly protected.

Applications of Single-Riveted Lap-Joint

The Single-Riveted Lap-Joint is commonly used in a variety of applications, including:
- Aircraft and aerospace
- Shipbuilding and marine
- Automotive and transportation
- Industrial equipment and machinery
The joint is particularly useful in applications where high strength and low weight are required.

What is the formula for the efficiency of a single riveted lap joint?

The formula for the efficiency of a single riveted lap joint is given by the ratio of the strength of the joint to the strength of the parent material. This ratio is often expressed as a percentage and is calculated based on the shear strength of the rivets and the bearing strength of the material.

Introduction to Riveted Lap Joints

A riveted lap joint is a type of joint used to connect two metal plates together using rivets. The efficiency of such a joint is critical in determining its reliability and safety in various applications. To calculate the efficiency, one must consider the design and construction of the joint, including the size and spacing of the rivets, as well as the properties of the materials involved.

1. The type of rivets used, such as solid or tubular rivets, can affect the joint's efficiency.
2. The spacing of the rivets, including the pitch and gauge, plays a crucial role in determining the joint's strength.
3. The thickness of the plates being joined and the diameter of the rivets are also important factors in calculating the joint's efficiency.

Factors Affecting Joint Efficiency

Several factors can influence the efficiency of a single riveted lap joint, including the type of load applied, the environmental conditions, and the maintenance of the joint. The corrosion of the rivets or plates can significantly reduce the joint's strength and efficiency. Additionally, the fatigue of the materials due to cyclic loading can lead to a decrease in the joint's reliability.

1. The temperature and humidity of the environment can affect the corrosion rate of the materials.
2. The frequency and amplitude of cyclic loads can influence the fatigue life of the joint.
3. The inspection and maintenance of the joint are critical in ensuring its continued efficiency and safety.

Design Considerations for Riveted Lap Joints

When designing a single riveted lap joint, several considerations must be taken into account to ensure the joint's efficiency and reliability. The size and spacing of the rivets, as well as the thickness of the plates, must be carefully selected to achieve the desired strength and efficiency. The type of rivets used and the method of installation can also impact the joint's performance.

1. The standard codes and regulations, such as those provided by the American Society of Mechanical Engineers (ASME), must be followed in the design of the joint.
2. The calculations for the joint's strength and efficiency must be based on sound engineering principles and practices.
3. The testing and validation of the joint's design are essential in ensuring its reliability and safety.

Materials Used in Riveted Lap Joints

The materials used in a single riveted lap joint can significantly impact its efficiency and reliability. The plates being joined and the rivets used must be selected based on their mechanical properties, such as strength, ductility, and corrosion resistance. The compatibility of the materials used is also crucial in ensuring the joint's performance and safety.

1. The chemical composition and microstructure of the materials can affect their mechanical properties and behavior.
2. The surface finish and cleanliness of the plates and rivets can influence the joint's strength and efficiency.
3. The environmental conditions, such as temperature and humidity, can impact the materials' properties and behavior.

Applications of Riveted Lap Joints

Single riveted lap joints are used in a wide range of applications, including aerospace, automotive, and construction industries. The efficiency and reliability of these joints are critical in ensuring the safety and performance of the structures and machines in which they are used. The design and construction of the joints must be carefully considered to achieve the desired strength and efficiency.

1. The weight and cost of the joint are important considerations in aerospace and automotive applications.
2. The durability and maintenance of the joint are critical in construction and infrastructure applications.
3. The standardization of the joint's design and construction can facilitate its manufacturing and installation.

What is the formula for riveted joints?

The formula for riveted joints is a mathematical representation of the strength and efficiency of a riveted joint, which is a type of fastening used to join two or more materials together. The formula takes into account the shear stress, bearing stress, and tensile stress on the rivet, as well as the material properties and geometry of the joint. The formula is used to calculate the ultimate strength of the joint and to determine the required rivet diameter and spacing.

Introduction to Riveted Joints

Riveted joints are widely used in aerospace, automotive, and construction industries due to their high strength-to-weight ratio and ease of fabrication. The formula for riveted joints is essential in designing and analyzing these joints to ensure their structural integrity and reliability. The formula involves several variables, including the rivet diameter, rivet material, plate thickness, and joint configuration. Some of the key factors to consider when designing riveted joints include:

1. Material selection: Choosing the right materials for the rivet and the plates is crucial in determining the strength and corrosion resistance of the joint.
2. Rivet spacing: The spacing between rivets affects the stress distribution and load-carrying capacity of the joint.
3. Rivet diameter: The diameter of the rivet influences the shear stress and bearing stress on the joint.

Types of Riveted Joints

There are several types of riveted joints, including lap joints, butt joints, and tee joints. Each type of joint has its own design considerations and formula for calculating the ultimate strength. The formula for riveted joints must take into account the unique characteristics of each joint type, including the stress concentrations and load paths. Some of the key differences between joint types include:

1. Lap joints: These joints are susceptible to shear stress and bearing stress, and require careful design to ensure structural integrity.
2. Butt joints: These joints are subject to tensile stress and compressive stress, and require precise alignment to ensure load-carrying capacity.
3. Tee joints: These joints are used in complex structures and require specialized design to account for multiple load paths.

Riveted Joint Design Considerations

When designing riveted joints, several factors must be considered, including the material properties, geometry, and loading conditions. The formula for riveted joints must be used in conjunction with design guidelines and industry standards to ensure that the joint is safe and reliable. Some of the key design considerations include:

1. Safety factors: Applying safety factors to the design to account for uncertainties and variabilities in the materials and loading conditions.
2. Load calculation: Calculating the loads and stresses on the joint to ensure that it can withstand the expected loads.
3. Fatigue analysis: Performing fatigue analysis to ensure that the joint can withstand repeated loading and unloading cycles.

Formula for Riveted Joints

The formula for riveted joints is a complex mathematical expression that takes into account the shear stress, bearing stress, and tensile stress on the rivet, as well as the material properties and geometry of the joint. The formula is typically expressed as:

1. Shear stress: The shear stress on the rivet is calculated using the formula: τ = F / (π d^2 / 4), where τ is the shear stress, F is the load, and d is the rivet diameter.
2. Bearing stress: The bearing stress on the rivet is calculated using the formula: σ = F / (d t), where σ is the bearing stress, F is the load, d is the rivet diameter, and t is the plate thickness.
3. Tensile stress: The tensile stress on the rivet is calculated using the formula: σ = F / (π d^2 / 4), where σ is the tensile stress, F is the load, and d is the rivet diameter.

Applications of Riveted Joints

Riveted joints have a wide range of applications in aerospace, automotive, and construction industries. The formula for riveted joints is essential in designing and analyzing these joints to ensure their structural integrity and reliability. Some of the key applications include:

1. Aircraft structures: Riveted joints are used in aircraft structures, such as fuselage and wing assemblies, to provide high strength-to-weight ratio and ease of fabrication.
2. Automotive structures: Riveted joints are used in automotive structures, such as chassis and body assemblies, to provide high strength and durability.
3. Construction: Riveted joints are used in construction, such as bridge and building assemblies, to provide high strength and stability.

What is the formula for rivets?

The formula for rivets is not a single mathematical equation, but rather a set of design and manufacturing guidelines that ensure the strength and integrity of the rivet joint. The design of a rivet involves several key factors, including the material properties, geometry, and loading conditions. The formula for rivets typically involves the calculation of the shear stress and tensile stress on the rivet, as well as the bearing stress on the surrounding material.

Introduction to Rivet Design

The design of a rivet is critical to ensuring the safety and reliability of the joint. The rivet must be able to withstand the applied loads and stresses without failing. The formula for rivets takes into account the rivet diameter, length, and material properties, such as the yield strength and ultimate tensile strength. Some key factors to consider when designing a rivet include:

1. Material selection: choosing a material that can withstand the applied loads and stresses
2. Rivet geometry: designing the rivet shape and size to optimize its strength and performance
3. Loading conditions: considering the types of loads and stresses that the rivet will be subjected to

Rivet Material Properties

The material properties of the rivet are critical to its performance and durability. The formula for rivets takes into account the yield strength, ultimate tensile strength, and elastic modulus of the material. The rivet material must be able to withstand the applied stresses without deforming or failing. Some key material properties to consider include:

1. Tensile strength: the maximum stress that the material can withstand without failing
2. Yield strength: the stress at which the material begins to deform plastically
3. Elastic modulus: the measure of the material's stiffness and ability to resist deformation

Rivet Geometry and Design

The geometry and design of the rivet are critical to its performance and efficiency. The formula for rivets takes into account the rivet diameter, length, and head type. The rivet shape and size must be optimized to maximize strength and minimize weight. Some key design factors to consider include:

1. Rivet diameter: the diameter of the rivet, which affects its shear strength and tensile strength
2. Rivet length: the length of the rivet, which affects its bearing strength and grip length
3. Head type: the type of head on the rivet, which affects its appearance and functionality

Loads and Stresses on Rivets

The loads and stresses on the rivet are critical to its performance and reliability. The formula for rivets takes into account the shear stress, tensile stress, and bearing stress on the rivet. The rivet must be able to withstand the applied loads and stresses without failing. Some key loads and stresses to consider include:

1. Shear stress: the stress that causes the rivet to deform or fail in shear
2. Tensile stress: the stress that causes the rivet to deform or fail in tension
3. Bearing stress: the stress that causes the rivet to deform or fail in bearing

Formula for Rivet Strength

The formula for rivet strength is a critical component of the design process. The formula takes into account the material properties, geometry, and loading conditions to calculate the shear strength, tensile strength, and bearing strength of the rivet. Some key factors to consider when calculating the formula for rivet strength include:

1. Material properties: the yield strength, ultimate tensile strength, and elastic modulus of the material
2. Rivet geometry: the rivet diameter, length, and head type
3. Loading conditions: the applied loads and stresses on the rivet

What is a single riveted lap joint?

A single riveted lap joint is a type of joint used in the construction of aircraft, vehicles, and other structures where two overlapping pieces of metal are joined together using rivets. This joint is commonly used in situations where a strong and rigid connection is required, but where a weld or other type of joint is not feasible.

Design and Construction of Single Riveted Lap Joints

The design and construction of a single riveted lap joint involves overlapping two pieces of metal and then using rivets to secure them together. The rivets are typically spaced at regular intervals to ensure a strong and even connection. The joint is designed to withstand various types of stress and strain, including tension, compression, and shear. Some of the key features of a single riveted lap joint include:

1. Overlapping metal pieces to provide a strong and rigid connection
2. Use of rivets to secure the metal pieces together
3. Regular spacing of rivets to ensure a strong and even connection

Advantages of Single Riveted Lap Joints

Single riveted lap joints have several advantages that make them a popular choice in various industries. One of the main advantages is their ability to provide a strong and rigid connection, while also being relatively simple and inexpensive to construct. Additionally, single riveted lap joints can be easily inspected and maintained, making them a practical choice for many applications. Some of the key advantages of single riveted lap joints include:

1. Strong and rigid connection
2. Relatively simple and inexpensive to construct
3. Easy to inspect and maintain

Applications of Single Riveted Lap Joints

Single riveted lap joints have a wide range of applications in various industries, including aerospace, automotive, and construction. They are commonly used in the construction of aircraft, vehicles, and other structures where a strong and rigid connection is required. Some of the key applications of single riveted lap joints include:

1. Aircraft construction
2. Vehicle construction
3. Building construction

Limitations of Single Riveted Lap Joints

While single riveted lap joints have several advantages, they also have some limitations that need to be considered. One of the main limitations is their vulnerability to fatigue and corrosion, which can weaken the joint over time. Additionally, single riveted lap joints can be heavy and bulky, making them less suitable for applications where weight and size are a concern. Some of the key limitations of single riveted lap joints include:

1. Vulnerability to fatigue and corrosion
2. Heavy and bulky
3. May not be suitable for high-stress applications

Maintenance and Inspection of Single Riveted Lap Joints

Regular maintenance and inspection are crucial to ensure the integrity and safety of single riveted lap joints. This includes checking for signs of wear and tear, such as cracks and corrosion, and ensuring that the rivets are securely in place. Additionally, any damage or defects should be repaired or replaced promptly to prevent further damage. Some of the key maintenance and inspection tasks for single riveted lap joints include:

1. Regular visual inspections
2. Checking for signs of wear and tear
3. Ensuring that rivets are securely in place

Frequently Asked Questions (FAQs)

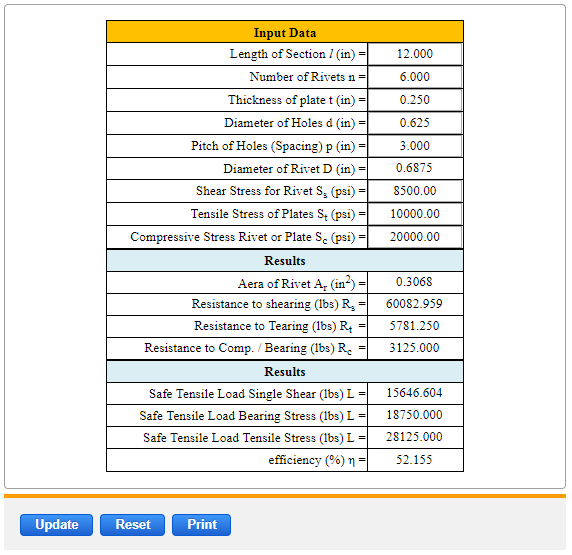

What is the purpose of Single-Riveted Lap-Joint Equations and Calculator?

The Single-Riveted Lap-Joint Equations and Calculator is a tool used to calculate the stress and strength of a single-riveted lap joint, which is a type of joint commonly used in engineering and construction projects. The calculator is based on a set of equations that take into account the geometry of the joint, the material properties of the components, and the loading conditions. The purpose of the calculator is to provide engineers and designers with a quick and accurate way to determine the structural integrity of a single-riveted lap joint, which is critical in ensuring the safety and reliability of the overall structure. By using the calculator, users can easily calculate the allowable stress and factor of safety for the joint, which can help to prevent failure and collapse.

How do Single-Riveted Lap-Joint Equations and Calculator work?

The Single-Riveted Lap-Joint Equations and Calculator work by using a set of mathematical equations that are based on the principles of mechanics and material science. The calculator requires users to input parameters such as the thickness and width of the plates, the diameter and spacing of the rivets, and the type of material used. The calculator then uses these inputs to calculate the stress and strain on the joint, as well as the factor of safety. The equations used in the calculator are based on the theory of elasticity and plasticity, and take into account the non-linear behavior of the materials. The calculator also allows users to select different units and material properties, making it a versatile and user-friendly tool. By using the calculator, users can quickly and accurately determine the structural behavior of a single-riveted lap joint, which can help to optimize the design and improve the performance of the overall structure.

What are the advantages of using Single-Riveted Lap-Joint Equations and Calculator?

The Single-Riveted Lap-Joint Equations and Calculator offer several advantages over traditional design methods. One of the main advantages is the speed and accuracy of the calculations, which can be performed in a matter of seconds. This allows engineers and designers to quickly iterate and optimize their designs, which can help to reduce the time and cost of the project. Another advantage is the ease of use, which makes it accessible to users with limited expertise in structural analysis. The calculator also provides a detailed report of the calculations, which can help to identify potential weaknesses and improve the overall design. Additionally, the calculator can be used to validate and verify the results of finite element analysis and other numerical methods, which can help to increase confidence in the design. Overall, the Single-Riveted Lap-Joint Equations and Calculator is a powerful tool that can help to improve the efficiency and effectiveness of the design process.

What are the limitations of Single-Riveted Lap-Joint Equations and Calculator?

The Single-Riveted Lap-Joint Equations and Calculator have several limitations that users should be aware of. One of the main limitations is the simplifying assumptions made in the equations, which may not accurately reflect the complex behavior of the joint. For example, the calculator assumes that the rivets are perfectly rigid and that the plates are perfectly flexible, which may not be the case in real-world applications. Another limitation is the limited range of material properties and loading conditions that the calculator can handle. Users should also be aware that the calculator is only applicable to single-riveted lap joints, and may not be suitable for other types of joints or complex structures. Additionally, the calculator does not take into account dynamic loading or fatigue effects, which can be important considerations in certain design applications. Overall, while the Single-Riveted Lap-Joint Equations and Calculator is a useful tool, it should be used in conjunction with other design methods and expert judgment to ensure that the design is safe and reliable.
