Boiler Tubes Thickness Pressure Equation and Calculator

The integrity of boiler tubes is crucial for the safe and efficient operation of steam generators and other heat exchangers. One key factor in maintaining this integrity is the tube thickness, which must be sufficient to withstand the internal pressure of the system. The boiler tubes thickness pressure equation is a critical tool for calculating the minimum required thickness of boiler tubes to ensure they can handle the operating pressures. This equation takes into account various factors, including the internal pressure, tube material, and tube diameter, to provide an accurate calculation of the required thickness.

Understanding Boiler Tubes Thickness Pressure Equation and Calculator

The Boiler Tubes Thickness Pressure Equation and Calculator is a crucial tool in the design and operation of boilers. It helps to determine the minimum required thickness of boiler tubes based on the internal pressure, temperature, and other factors. This equation is essential to ensure the safe and efficient operation of boilers, as it helps to prevent tube failures and explosions.

Introduction to Boiler Tubes Thickness Pressure Equation

The Boiler Tubes Thickness Pressure Equation is a mathematical formula that calculates the minimum required thickness of boiler tubes based on the internal pressure, temperature, and other factors. The equation takes into account the yield strength of the material, the internal pressure, the outside diameter of the tube, and the corrosion allowance. The equation is as follows: t = (P x D) / (2 x S x E), where t is the minimum required thickness, P is the internal pressure, D is the outside diameter, S is the yield strength, and E is the efficiency of the tube.

Factors Affecting Boiler Tubes Thickness Pressure Equation

There are several factors that affect the Boiler Tubes Thickness Pressure Equation. These include the internal pressure, temperature, material properties, corrosion allowance, and tube diameter. The internal pressure and temperature are the most critical factors, as they directly affect the stress on the tube. The material properties, such as the yield strength and ultimate tensile strength, also play a crucial role in determining the minimum required thickness.

Calculator for Boiler Tubes Thickness Pressure Equation

A calculator for the Boiler Tubes Thickness Pressure Equation is a useful tool that helps to simplify the calculation process. The calculator takes into account all the necessary factors, including the internal pressure, temperature, material properties, corrosion allowance, and tube diameter. The calculator provides a quick and accurate way to determine the minimum required thickness of boiler tubes, ensuring that the boiler operates safely and efficiently.

Applications of Boiler Tubes Thickness Pressure Equation and Calculator

The Boiler Tubes Thickness Pressure Equation and Calculator has several applications in the design and operation of boilers. It is used to determine the minimum required thickness of boiler tubes, ensuring that the boiler operates safely and efficiently. The equation and calculator are also used to optimize the design of boilers, reducing the risk of tube failures and explosions. Additionally, the equation and calculator are used to inspect and maintain boilers, ensuring that they operate within the specified parameters.

Limitations and Assumptions of Boiler Tubes Thickness Pressure Equation and Calculator

There are several limitations and assumptions associated with the Boiler Tubes Thickness Pressure Equation and Calculator. The equation assumes that the tube is cylindrical and that the internal pressure is uniform. The equation also assumes that the material properties are constant and that the corrosion allowance is uniform. The calculator also has limitations, as it is based on a simplified model of the boiler tube. Therefore, it is essential to consider these limitations and assumptions when using the equation and calculator.

What is the formula for pressure and thickness?

The formula for pressure and thickness is related to the concept of stress and strain in materials. The pressure (P) is defined as the force (F) applied per unit area (A), and it is measured in units of pascals (Pa). The thickness (t) is a measure of the dimension of an object or material, and it is typically measured in units of meters (m) or millimeters (mm). The relationship between pressure and thickness can be described by the formula: P = F / A, where F is the force applied and A is the area over which the force is applied.

Understanding the Concept of Pressure

The concept of pressure is crucial in understanding the relationship between pressure and thickness. Pressure is a measure of the force exerted per unit area on an object or material. The formula for pressure is P = F / A, where F is the force applied and A is the area over which the force is applied. Some key points to consider when understanding pressure include:

1. The units of pressure are typically measured in pascals (Pa) or pounds per square inch (psi).
2. The magnitude of pressure depends on the force applied and the area over which it is applied.
3. Pressure can be classified into different types, including hydrostatic pressure, atmospheric pressure, and gauge pressure.

Relating Pressure to Thickness

The relationship between pressure and thickness is critical in understanding how materials respond to stress and strain. The thickness of a material can affect its resistance to pressure and its ability to withstand stress. Some key points to consider when relating pressure to thickness include:

1. The thickness of a material can affect its stiffness and rigidity.
2. The pressure applied to a material can cause it to deform or fail if it is not sufficient to withstand the stress.
3. Material properties, such as density and elastic modulus, can influence the relationship between pressure and thickness.

Material Properties and Pressure

Material properties, such as density, elastic modulus, and poisson's ratio, play a significant role in understanding the relationship between pressure and thickness. These properties can affect the resistance of a material to pressure and its ability to withstand stress. Some key points to consider when evaluating material properties include:

1. The density of a material can affect its weight and resistance to pressure.
2. The elastic modulus of a material can influence its stiffness and rigidity.
3. Poisson's ratio can affect the lateral strain of a material under pressure.

Applications of Pressure and Thickness

The relationship between pressure and thickness has numerous applications in various fields, including engineering, materials science, and physics. Some key points to consider when evaluating applications include:

1. Pressure vessels, such as tanks and pipes, require careful consideration of pressure and thickness to ensure safety and reliability.
2. Aerospace engineering applications, such as aircraft and spacecraft, require precise calculations of pressure and thickness to ensure structural integrity.
3. Biomedical applications, such as implants and prosthetics, require careful consideration of pressure and thickness to ensure compatibility and safety.

Calculating Pressure and Thickness

Calculating pressure and thickness requires careful consideration of material properties, geometry, and boundary conditions. Some key points to consider when calculating pressure and thickness include:

1. The formula for pressure is P = F / A, where F is the force applied and A is the area over which the force is applied.
2. The thickness of a material can be calculated using the formula t = V / A, where V is the volume and A is the area.
3. Numerical methods, such as finite element analysis, can be used to calculate pressure and thickness in complex geometries and materials.

What is the formula for tube thickness?

The formula for tube thickness is a critical calculation in various industries, including engineering, manufacturing, and construction. The formula is based on the Barlow's formula, which calculates the minimum wall thickness required for a tube to withstand internal pressure. The formula is: t = (P D) / (2 S E), where t is the minimum wall thickness, P is the internal pressure, D is the outside diameter of the tube, S is the allowable stress, and E is the joint efficiency.

Understanding the Variables

The variables in the tube thickness formula are crucial in determining the minimum wall thickness required. The internal pressure (P) is the pressure exerted on the inside of the tube, while the outside diameter (D) is the diameter of the tube. The allowable stress (S) is the maximum stress that the material can withstand without failing, and the joint efficiency (E) is a factor that depends on the type of welding or joining method used. Some key factors to consider when calculating tube thickness include:

1. Material properties: The strength and ductility of the material used for the tube.
2. Operating conditions: The temperature, pressure, and corrosion rates that the tube will be exposed to.
3. Design requirements: The dimensional tolerances and surface finish required for the tube.

Calculating Tube Thickness

Calculating tube thickness involves plugging in the values for the variables in the formula. For example, if the internal pressure is 1000 psi, the outside diameter is 10 inches, the allowable stress is 20000 psi, and the joint efficiency is 0.85, the minimum wall thickness can be calculated as: t = (1000 10) / (2 20000 0.85) = 0.029 inches. Some key steps in calculating tube thickness include:

1. Gathering data: Collecting the necessary data for the variables in the formula.
2. Plugging in values: Substituting the values into the formula to calculate the minimum wall thickness.
3. Verifying results: Checking the calculated value against industry standards and regulations.

Industry Applications

The tube thickness formula has various applications in different industries, including power generation, chemical processing, and oil and gas. In these industries, tubes are used to transport fluids and gases under high pressure, and the minimum wall thickness is critical to ensure safety and efficiency. Some key applications of the tube thickness formula include:

1. Boiler tubes: Calculating the minimum wall thickness for boiler tubes to withstand high pressure and temperature.
2. Heat exchanger tubes: Determining the minimum wall thickness for heat exchanger tubes to optimize heat transfer and efficiency.
3. Piping systems: Calculating the minimum wall thickness for piping systems to ensure safety and reliability.

Material Selection

The material selection for the tube is critical in determining the minimum wall thickness required. Different materials have different strength, ductility, and corrosion resistance properties, which affect the allowable stress and joint efficiency values. Some key factors to consider when selecting a material for the tube include:

1. Mechanical properties: The strength, ductility, and hardness of the material.
2. Corrosion resistance: The ability of the material to withstand corrosion and erosion.
3. Cost: The cost of the material and its fabrication and installation.

Design Considerations

The design of the tube and its connections and fittings is critical in determining the minimum wall thickness required. The design should take into account the operating conditions, load and stress distributions, and safety factors. Some key design considerations include:

1. Tube geometry: The shape and size of the tube, including the diameter, length, and thickness.
2. Connection types: The type of connections and fittings used, such as welding, threading, or flanging.
3. Supports and restraints: The type and location of supports and restraints used to maintain the tube's position and stability.

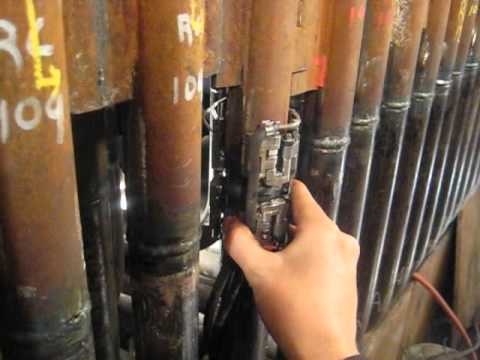

How to measure boiler tube thickness?

To measure boiler tube thickness, it is essential to use the right equipment and techniques. The most common method is ultrasonic thickness measurement, which involves using an ultrasonic thickness gauge to send high-frequency sound waves through the tube wall. The time it takes for the sound waves to bounce back is measured, and this time is used to calculate the thickness of the tube. This method is non-destructive and can be performed without shutting down the boiler.

Preparation for Measurement

Before measuring the boiler tube thickness, it is crucial to prepare the surface of the tube. This involves cleaning the area where the measurement will be taken to remove any debris or corrosion that may affect the accuracy of the reading. The surface should be dry and free of any oil or grease. The ultrasonic thickness gauge should be calibrated according to the manufacturer's instructions to ensure accurate readings.

1. Clean the surface of the tube to remove any debris or corrosion
2. Dry the surface to prevent any moisture from affecting the reading
3. Calibrate the ultrasonic thickness gauge according to the manufacturer's instructions

Ultrasonic Thickness Measurement

Ultrasonic thickness measurement is a widely used method for measuring boiler tube thickness. This method involves using an ultrasonic thickness gauge to send high-frequency sound waves through the tube wall. The time it takes for the sound waves to bounce back is measured, and this time is used to calculate the thickness of the tube. This method is non-destructive and can be performed without shutting down the boiler.

1. Send high-frequency sound waves through the tube wall using an ultrasonic thickness gauge
2. Measure the time it takes for the sound waves to bounce back
3. Calculate the thickness of the tube based on the measured time

Alternative Methods

There are alternative methods for measuring boiler tube thickness, including magnetic and eddy current methods. These methods involve using a probe to measure the thickness of the tube. The magnetic method is suitable for ferromagnetic materials, while the eddy current method is suitable for non-ferromagnetic materials.

1. Use a magnetic probe to measure the thickness of ferromagnetic materials
2. Use an eddy current probe to measure the thickness of non-ferromagnetic materials
3. Choose the most suitable method based on the type of material and the accuracy required

Factors Affecting Accuracy

There are several factors that can affect the accuracy of boiler tube thickness measurements, including surface roughness, corrosion, and temperature. It is essential to take these factors into account when measuring the thickness of the tube to ensure accurate readings.

1. Surface roughness can affect the accuracy of the reading
2. Corrosion can reduce the accuracy of the reading
3. Temperature can affect the accuracy of the reading, especially for ultrasonic measurements

Importance of Regular Measurements

Regular measurements of boiler tube thickness are essential to ensure the safety and efficiency of the boiler. By monitoring the thickness of the tube, it is possible to detect any corrosion or wear and take corrective action before it leads to a failure.

1. Monitor the thickness of the tube regularly to detect any corrosion or wear
2. Take corrective action before any corrosion or wear leads to a failure
3. Ensure the safety and efficiency of the boiler by maintaining the recommended thickness

How to calculate thickness for a pressure vessel?

To calculate the thickness of a pressure vessel, you need to consider several factors, including the material properties, operating conditions, and design requirements. The calculation involves using formulas and equations to determine the minimum thickness required to ensure the vessel can withstand the internal pressure and external loads. The calculation is typically performed using the ASME Boiler and Pressure Vessel Code or other industry-recognized standards.

Material Selection and Properties

When calculating the thickness of a pressure vessel, it is essential to select the right material and determine its properties, such as yield strength, tensile strength, and ultimate strength. The material properties will affect the calculation, as different materials have varying strength-to-weight ratios and corrosion resistance. The following are some key material properties to consider:

1. Yield strength: The stress at which the material begins to deform plastically
2. Tensile strength: The maximum stress the material can withstand before failing
3. Ultimate strength: The maximum stress the material can withstand before rupturing

Design Conditions and Requirements

The design conditions and requirements for the pressure vessel, such as operating pressure, temperature, and corrosion allowance, must be considered when calculating the thickness. The design conditions will affect the stress and strain on the vessel, and the calculation must ensure that the vessel can withstand these loads. The following are some key design conditions to consider:

1. Operating pressure: The maximum pressure the vessel will be subjected to during operation
2. Temperature: The maximum temperature the vessel will be subjected to during operation
3. Corrosion allowance: The amount of material added to the vessel to account for corrosion and erosion

Calculation Methods and Formulas

There are several calculation methods and formulas available to calculate the thickness of a pressure vessel, including the ASME Boiler and Pressure Vessel Code and the API 650 standard. The calculation involves using equations to determine the minimum thickness required to ensure the vessel can withstand the internal pressure and external loads. The following are some key calculation methods to consider:

1. ASME Boiler and Pressure Vessel Code: A widely used standard for designing and calculating pressure vessels
2. API 650: A standard for designing and calculating atmospheric storage tanks
3. Finite element analysis: A numerical method for analyzing the stress and strain on a pressure vessel

Corrosion and Erosion Considerations

Corrosion and erosion can significantly affect the thickness and integrity of a pressure vessel. The calculation must include a corrosion allowance to account for the material loss due to corrosion and erosion. The following are some key considerations to include:

1. Corrosion rate: The rate at which the material is corroding or eroding
2. Corrosion allowance: The amount of material added to the vessel to account for corrosion and erosion
3. Coating and lining: The application of a coating or lining to protect the vessel from corrosion and erosion

Inspection and Testing Requirements

The inspection and testing requirements for the pressure vessel must be considered when calculating the thickness. The calculation must ensure that the vessel can withstand the internal pressure and external loads, and that it meets the regulatory requirements. The following are some key inspection and testing requirements to consider:

1. Hydrostatic testing: A test to verify the integrity of the vessel by filling it with water and applying pressure
2. Radiography testing: A non-destructive test to verify the integrity of the vessel by using X-rays or gamma rays
3. Ultrasonic testing: A non-destructive test to verify the integrity of the vessel by using ultrasound waves

Frequently Asked Questions (FAQs)

What is the Boiler Tubes Thickness Pressure Equation and how is it used in calculator tools?

The Boiler Tubes Thickness Pressure Equation is a mathematical formula used to calculate the minimum required thickness of boiler tubes based on the internal pressure and temperature of the boiler. This equation is crucial in ensuring the structurral integrity and safety of the boiler tubes, as it helps to prevent tube rupture and failure due to overpressure or overheating. The equation takes into account various factors such as the material properties of the tube, the corrosion allowance, and the safety factor. By using this equation in calculator tools, engineers and designers can quickly and accurately determine the required tube thickness, ensuring that the boiler is designed and operated within safe and efficient limits.

How does the Boiler Tubes Thickness Pressure Equation account for different materials and their properties?

The Boiler Tubes Thickness Pressure Equation accounts for different materials and their properties by incorporating factors such as the yield strength, tensile strength, and modulus of elasticity of the material. These properties are used to calculate the stress and strain on the tube, allowing for the determination of the minimum required thickness to withstand the internal pressure and temperature. The equation also considers the corrosion allowance, which is specific to each material, to ensure that the tube thickness is sufficient to withstand corrosion and erosion. Additionally, the equation can be modified to account for different material grades and conditions, such as annealed or normalized materials, to ensure that the calculated tube thickness is accurate and reliable.

What are the key factors that influence the calculation of boiler tube thickness using the Boiler Tubes Thickness Pressure Equation?

The key factors that influence the calculation of boiler tube thickness using the Boiler Tubes Thickness Pressure Equation include the internal pressure, temperature, material properties, corrosion allowance, and safety factor. The internal pressure is the primary factor, as it directly affects the stress and strain on the tube. The temperature also plays a crucial role, as it can affect the material properties and corrosion rates. The material properties, such as yield strength and tensile strength, are also essential in determining the required tube thickness. The corrosion allowance is another critical factor, as it ensures that the tube thickness is sufficient to withstand corrosion and erosion. Finally, the safety factor is used to account for any uncertainties or variabilities in the calculation, ensuring that the boiler tube is designed and operated with a margin of safety.

How can the Boiler Tubes Thickness Pressure Equation and calculator tools be used to optimize boiler design and operation?

The Boiler Tubes Thickness Pressure Equation and calculator tools can be used to optimize boiler design and operation by providing a rapid and accurate means of determining the minimum required tube thickness. By using these tools, engineers and designers can iterate on different design scenarios, exploring the effects of varying parameters such as internal pressure, temperature, and material properties. This allows for the optimization of boiler design, ensuring that the boiler is designed and operated within safe and efficient limits. Additionally, the calculator tools can be used to validate existing boiler designs, ensuring that they meet the required safety and performance standards. By leveraging the Boiler Tubes Thickness Pressure Equation and calculator tools, boiler manufacturers and operators can reduce costs, improve efficiency, and enhance safety, ultimately leading to better and more reliable boiler performance.
